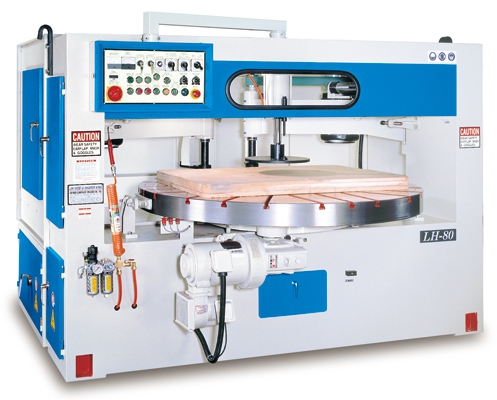

Heavy - Duty Auto Copy Shaping Machine -The Standard I

Product No : LH-60-LH-80-LH-100-LH-120
Heavy - Duty Auto Copy Shaping Machine -The Standard I
    Inquiry
    Product Introduction

    Heavy-duty Auto Copy Shaping Machine.

    Various sized mahcines are available, with capacity for workpieces from 1" ~ 120" suitable for solid products, plywood, acrylic, bent wood, etc.

    Various sized machines are available, with capacity for work.

    Woodworking Machine, Shaping Machine, Copy Shaper.

    Model LH-60 LH-80 LH-100 LH-120
    Cutting capacity 9"~60" 12"~80" 24"~100" 28"~120"
    Max. cutting length to width ratio 55.2" * 27.6" 71.4" * 35.7" 89.2" * 44.6" 110" * 55"
    Table diameter 46" 62" 72" 83"
    Table speed 0.5-3RPM 0.5-3RPM 0.5-3RPM 0.5-3RPM
    Spindle speed 9,000RPM 9,000RPM 9,000RPM 9,000RPM
    Spindle diameter 30mm 30mm 30mm 30mm
    Spindle height 5.5" 5.5" 5.5" 5.5"
    Max. cutter diameter range 200mm 200mm 200mm 200mm
    Follower wheel diameter 100mm 100mm 100mm 100mm
    Table drive motor 2HP/DC 2HP/DC 3HP/DC 3HP/DC
    Cutter head drive motor 10HP x 2 10HP x 2 10HP x 2 15HP x 2
    Net weight (kg) 2,200kgs 3,400kgs 3,800kgs 4,600kgs
    Gross weight (kg) 2,700kgs 3,700kgs 4,300kgs 5,200kgs
    Machine size (mm) 2,159 x 1,905 x 1,778 2,600 x 2,175 x 1,778 3,200 x 2,692 x 1,878 3,800 x 3,200 x 1,878
    Packing dimensions (mm) 2,260 x 1,910 x 2,220 2,800 x 2,250 x 2,220 3,272 x 2,260 x 2,220 3,980 x 2,260 x 2,220
    • Minimum Order : Negotiable
    • TEL: 886-4-25284431 / 886-4-25204443 / 886-4-25235406
    • FAX: 886-4-25289411 / 886-4-25273423
